The Neon object model
Summary: The Neon backend is structured as an organization, a project, and a branch. The branch is where the backend runs: Lakebase Postgres, Managed Better Auth, Object Storage, Functions, and the AI Gateway. A child branch is an isolated copy of that backend. Organizations hold billing, membership, and projects. A project sets the region and groups branches. Postgres and Object Storage use copy-on-write; Auth state lives in the database and branches with it; Functions and the AI Gateway get per-branch URLs and credentials. The AI Gateway model catalog is global. Computes, roles, databases, and the Data API belong to Postgres. API keys are scoped to an account, organization, or project, not to a branch.
The Neon object model
Section titled “The Neon object model”How the Neon backend is structured
On Neon, a branch is where your backend runs. It can include Lakebase Postgres, Managed Better Auth, Object Storage, Functions, and the AI Gateway.
You can create a child branch from the current or past state of another branch, starting from your production branch. Change it and delete it without affecting the original. That's useful for a preview, a pull request, or an experiment: you get a cloned backend to work against, not a second project to provision.
Every branch belongs to a project, and every project belongs to an organization.
In the Neon Console, API, and CLI, the hierarchy is org_id → project_id → branch_id. Connection strings, Auth URLs, function URLs, and the AI Gateway endpoint all belong to a branch. An API key is scoped to an account, an organization, or a project, so the same key can reach every branch in that scope. See What sits outside the hierarchy.

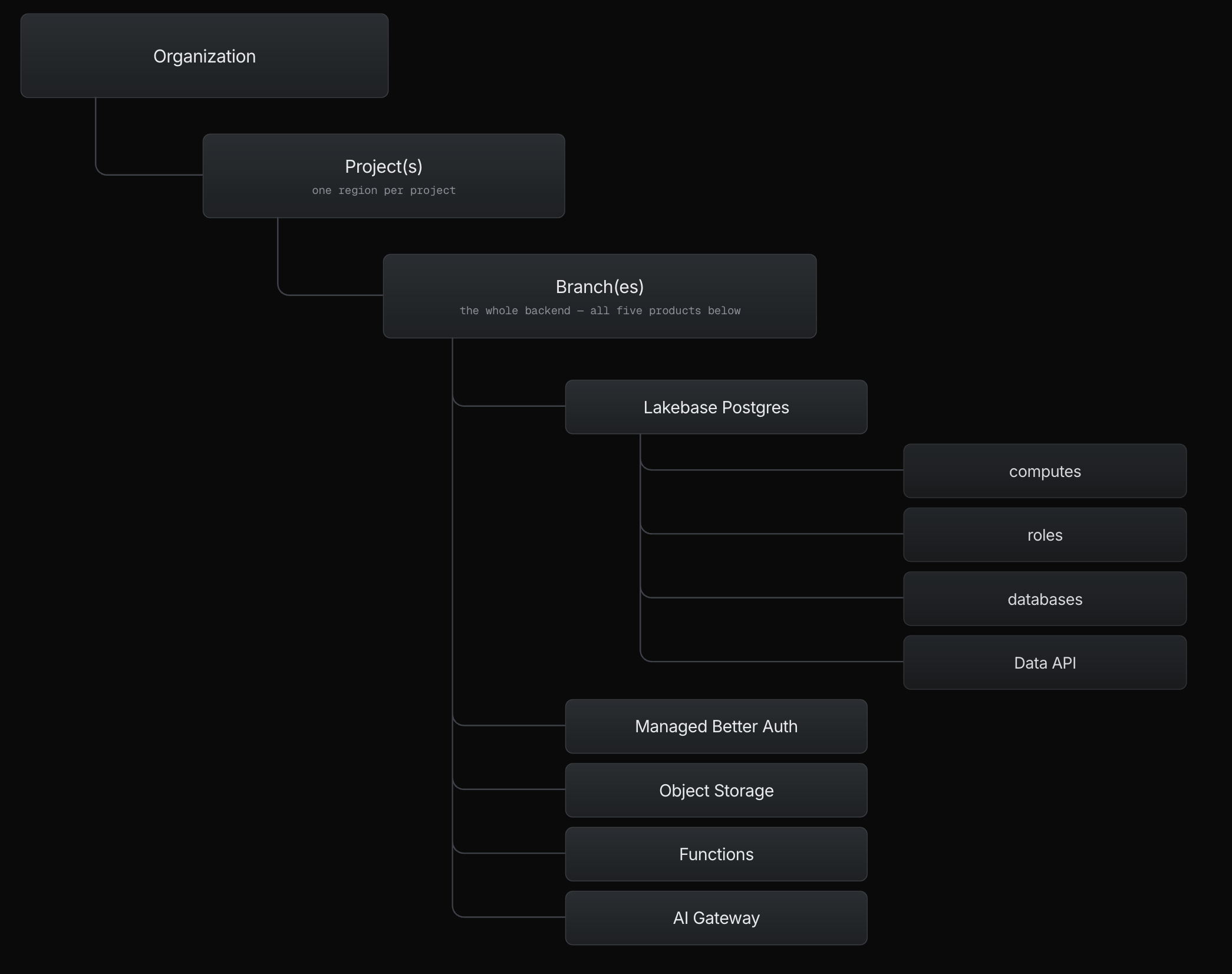

The hierarchy
Section titled “The hierarchy”An organization is the top-level container for your Neon projects. Billing, membership, and project ownership live at this level. One Neon account can belong to several organizations, and you can transfer projects between them. See Organizations.
A project is the workspace that groups your branches and holds the settings they share. You choose a region when you create the project, and it's fixed for the life of the project. Other project-level settings, such as the history window for instant restore, IP Allow rules, and project access, apply to every branch inside it. Each project is fully isolated, with separate data and credentials, which makes a project the right boundary for an app or a tenant that must stay separate. See Projects and Multitenancy.
A branch sits inside a project. Every project starts with a root branch you can't delete (production in the Neon Console, main via API or CLI). Every other branch is created as a child of an existing branch. Create a new project, rather than a branch, when you need a different region or a tenant that must stay fully separate. See Manage branches.
A full backend per branch
Section titled “A full backend per branch”When you create a child branch, it includes the same services enabled on its parent. What gets copied, shared, or re-created depends on the service.
| Service | What lives on the branch | What a child branch gets |
|---|---|---|
| Lakebase Postgres | Serverless Postgres. You connect through a compute on the branch (ep-... in the connection string). |
A copy-on-write clone of the parent's data at the moment you branch. Writes stay separate. |
| Managed Better Auth | Sign-in, users, sessions, and auth config. State lives in the branch's database, so there is nothing extra to provision. Each branch has its own Auth URL. | A copy of the whole database, including the neon_auth schema where its users and sessions live. See Branching authentication. |
| Object Storage | S3-compatible buckets and objects. | A copy-on-write clone of existing buckets and objects. See Buckets. |
| Functions | Your backend code, deployed on the branch, at its own function URL. | The same function at its own function URL, against this branch's data. |
| AI Gateway | One credential for all models across every major LLM provider. Each branch has its own endpoint, credentials, access, and metering. | A new endpoint and credentials, with usage metered on that branch. The model catalog is shared and global: you don't configure models per branch. |
Managed Better Auth, Object Storage, Functions, and the AI Gateway aren't available in every region yet. See Product availability.
What Lakebase Postgres contains
Section titled “What Lakebase Postgres contains”You connect as a role to a database through a compute. A branch has one read-write compute and can have multiple read replicas. Autoscaling and scale to zero are settings on the compute. The compute runs Postgres; it does not own the data. Durable database storage sits in a separate storage layer. That separation of storage and compute is what defines Lakebase Postgres. See The lakebase architecture.
The Data API is an HTTP interface to the same database, for callers that can't open a Postgres TCP connection, such as browsers and edge runtimes.
What sits outside the hierarchy
Section titled “What sits outside the hierarchy”- Your Neon account. The account is how you sign in. It isn't a container for resources, and it can belong to several organizations. See Accounts.
- API keys. A key is personal (your account), organization-scoped, or project-scoped. None of those scopes is a branch. See Manage API keys.
- Region. The region is set on the project when you create it. Every branch in the project inherits it. See Regions.
Where to go next
Section titled “Where to go next”- The lakebase architecture: How compute and durable storage are separated underneath Postgres
- Branching: What branches are for and how to work with them
- How a Neon backend fits together: One example app built across all five services
